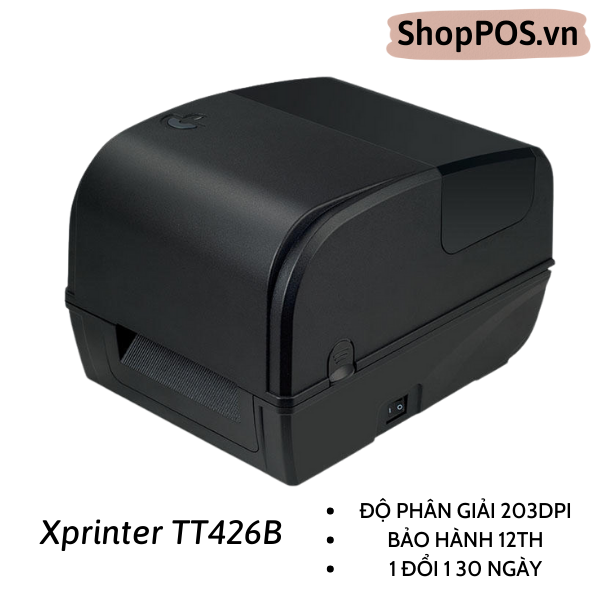

| Printer Model | XP-TT426B |
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Thermal Transfer / Direct Thermal |
| Max.print speed | 127 mm/s Max. |
| Max.print width | 108 mm (4.25") |
| Max.print length | 1778 mm (70") |
| Media | |
| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 25.4-118mm (1.0”-4.6”) |
| Media thickness | 0.06~0.254 mm (2.36~10mil) |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") |
| Label length | 10 - 1778 mm(0.39" ~ 70" ) |
| Label roll capacity | 127 mm (5“) OD (External diameter) |
| Ribbon capacity | Max.300m |
| Ribbon width | 110 mm |
| Ribbon core | 25.4 mm (1") |
| inner diameter | |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb |
| Interface | Stardard version: USB Optional:Lan/WIFI/Bluetooth/TF card |
| Sensors | ①Gap sensor |
| | ②Cover opening sensor |
| | ③Black mark sensor |
| | ④Ribbon sensor |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) |
| | digits add-on, MSI, PLESSEY, POSTNET, China POST |
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Rotation | 0°、90°、180°、270° |
| Emulation | TSPL、EPL、ZPL、DPL |
| Physical Features | |
| Dimension | 299 mm (D) x 235 mm (W) x 198.3 mm (H) |
| Weight | 2.55kg |
| Reliability | |
| Print head life | 30 km |
| Software | |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Android/iOS |
| Power supply | |
| Input：AC 110-240V,1.8A, 50-60Hz | |
| Output：DC 24V, 2.5A, 60W | |
| Options | |
| Factory Options | ① Built-in Ethernet server (10/100 Mbps); ② RS-232C (2400-115200 bps) communication interface; |
| | ③ Cutter ④ Peeling machine ⑤ Bluetooth module ⑥ WiFi module |
| Dealer Options | ①External paper roll holder and 1 "paper roll; |
| | ②Extension board for external paper roll holder |
| Environmental Conditions | |
| Operation | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing |
| environment | |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing |
